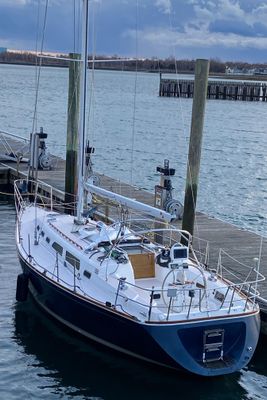

1999 Sabre 402

The mandate given Jim Taylor and the Sabre Design Team was to design and build a sailing yacht with exceptional performance, yet still easily sailed by a couple. The Sabre 402 is fast but requires little physical effort to make her perform. She is ruggedly built and incorporates new technology such as a carbon fiber rudder post and state of the art keel designs. The Sabre 402 with her contemporary, wider beam - carried further aft than in her predecessors - has an abundance of interior volume.

The main salon is impressive and takes full advantage of the 402's beam of 13-feet 4-inches. Comfortable settees are found to port and starboard, with the port side convertible to a double berth. An elegant yacht table, which will comfortably seat six at meal time, is located on the centerline. Storage lockers above the berth backs provideample space for stowage. Aft and to starboard is the forward facing navigator's table, which has all of the space required for a sophisticated electronics system. The navigator's seat also serves as a place for socializing with the cook when meals are being prepared in the galley to port.

To starboard and aft of the nav station are the head and shower. Molded in fiberglass, this easily maintained unit incorporates a marine head, a sink recessed in the countertop, and lots of dry storage in the lockers outboard. A separate shower stall with teak seat is located aft of the head. This compartment has a door providing access to the aft cabin.

The 50 horsepower auxiliary engine is located under the galley on the centerline. Keeping this weight and the weight of all tankage in the middle of the hull adds greatly to the sea kindliness and comfort of the yacht.

The galley to port has ample storage lockers. Outboard, above the countertop, there are plenty of drawers and an ice box comparable in volume to a domestic refrigerator. A double stainless steel sink with mixing faucet is located in the island above the engine. A three burner propane stove with oven is found at the aft end of the galley.

The aft cabin has a large berth with storage spaces and drawers underneath. The berth's occupants can recline with open spaces overhead - unlike the aft cabins of many boats of this type. Outboard of the berth is a long shelf with lockers, a set of drawers, and a large hanging locker. At the forward end of the cabin on centerline is a convenient magazine - book rack.

The bridgedeck - a safety feature in heavy seas - becomes a welcome interior space, providing ease of access from the head to the aft cabin.

In the forward cabin, the Sabre 402's hull volume comfortably houses a 6-foot 10-inch long center island berth surrounded by hanging lockers, storage lockers, and ample shelving; also in the forward cabin is a vanity with Corian counter, sink, and mirror. There is storage under the berth.

At the bow, the custom cast anchor roller is designed to easily accommodate two anchors. Aft of the stem is the large chain locker which can also house the optional anchor windlass below deck level. Moving aft there are six small and two large deck hatches which allow plenty of light and air to fill the yacht's interior. Along the sides of thehouse are eight stainless steel opening ports and two large fixed ports. Two chrome dorades ensure circulation of the interior air when the yacht is at rest.

The AwIgrip finished, triple spreader rig, with aft swept spreaders and rod rigging, is the source of power which drives the performance of the Sabre 402. This mast section was chosen for its light weight and strength. A lighter mast causes the boat to heel and to pitch less, improving performance and adding comfort and safety. Her Genoa tracks are placed well inboard for close sheeting angles and superb weather sailing performance. The Sabre 402 has a second set of genoa tracks on the wooden toe rail for use off the wind or when conditions require a more wide open slot between genoa and mainsail.

Her cockpit is designed for maximum comfort and security at sea. Unlike many other 40 footers where "picnic" tables have become the most important feature of the cockpit, the crew of the Sabre 402 can always find a place to brace their feet on the face of the seat on the low side. The cockpit shapes required to house these tables typically rob the boat's interior of much needed aft cabin volume. The bridgedeck at the forward end of the cockpit serves several purposes: it prevents flooding of the interior (in the event that a wave should board the yacht), it provides a well sheltered seat when used with a dodger if the weather is poor, and it allows standing headroom in the passageway from the head to the aft cabin.

Large top and front loading fridge

Large top loading freezer

 Propane 4 burner stove and oven

 Double stainless steel sink

 Pressurized hot and cold water

 "Waterfixer" water filtration

 Corian countertops

 Panasonic microwave

Furuno Navnet 3D chartplotter/radar at navigation station

Furuno Navnet 3D chartplotter/radar at helm

Furuno autopilot at helm

2 x Standard Horizon VFH's at navigation station

Standard Horizon VHF remote at helm

Furuno GPS at helm

Richie compass

JVC stereo system with Bose speakers

Weems & Plath barometer & clock

 Windlass

Bruce anchor

Fold down cockpit table

Life Sling

2 x 44 Lewmar self tailing winches

2 x 54 Lewmar self tailing winches

7 x Lewmar spinlocks

Whisker pole

Cockpit Cushions

2016 3DL New North main

2016 3DL North genoa

Roller furling

2016 Harken Batt-car system

Harken mainsail track

Compression Boom Vang

Blue Seas circuit board

Balmar regulator

Heart interface charger/inverter

22' Flat screen TV

LG Blueray DVD

Espar hydronic diesel heat

Iverson Dodger

Carpet throughout

Custom box spring and mattresses

Hull Construction

Single unit, balsa cored, hand-laminated fiberglass of alternate layers of mat knitted biaxial roving.

ISO NPG gelcoat.

Below waterline chopped strand glass and vinylester resin are used as a back-up for ISO NPG gelcoat.

Internal deck to hull joint.

Molded-in double boot and cove stripes.

Bulkheads, berth faces, shelves and floor stringers laminated to hull providing integral, structural strength.

Choice of step or traditional transom.

Deck Construction

Single unit, hand-laminated fiberglass with balsa core for stiffness and marine mahogany plywood in lieu of balsa in high stress areas.

The deck is fastened to the hull using stainless steel thru-bolts every 6" (4" in way of genoa tracks)

3M 5200 Polyurethane sealant in hull to deck joint.

Steering System

Edson wheel steering with 40" comfort grip destroyer wheel, pedestal guard, and brake.

Ritchie SP-5 compass mounted in stainless steel binnacle.

Emergency tiller stored in cockpit locker.

Balanced rudder, molded fiberglass bonded to a carbon fiber rudder stock passing through a Tide's Marine

top bearing and a lip seal bearing laminated to the hull.

Cockpit

Deep storage locker to starboard.

Molded-in winch handle pockets; coamings angled for comfort.

Solid teak cup holder on pedestal.

Two cockpit scuppers to bronze seavalves.

Stove fuel storage locker in aft lazarette.

Transom boarding ladder with teak treads.

Chainplates

Stainless steel, thru-bolted to chainplate bulkheads bonded to the hull.

Grounded to the keel.

Mounted well inboard for optimum sheeting angles.

Keel

A modern section fin keel cast in lead with antimony added for strength.

Thru-bolted to sump with stainless steel bolts and bronze nuts.

Mast

One piece aluminum, keel stepped, Hall Spar mast with triple airfoil spreaders, masthead rig with white

Awlgrip finish

Tri-sect masthead with 3 forward halyard sheaves

Internal main and genoa halyards.

Boom vang lug.

Spare halyard exits.

Pre-wired with radio cable.

Boom

Aluminum, white Awlgrip finish

Internal clew outhaul led aft

External topping lift

Two sets of internal jiffy reefing led aft

Electrical System

Four 12-volt 110 amp group 31 deep cycle marine batteries

Sealed battery switch

110 V shore power system with GFI protection in galley and head

50' shore power cord

Master AC-DC panels, located in the navigation area, include AC-DC volt and ammeters, marine circuit

breakers, and polarity indicator,

All wiring is color coded and tinned and meets USCG standards.

Cabin courtesy lights

Deck Hardware

Inboard and outboard genoa tracks are 1-1-4" x 3-16" x 12' aluminum T-track.

Inboard tracks are recessed into the deck tooling

Chrome cowl vents

Stainless companionway handrail

Outboard tracks supplied with end stops and Lewmar lead blocks

Inboard tacks supplied with end stops and two Lewmar twinsheet lead blocks

Five part main sheet with Lewmar Ocean Racing blocks led to Harken ball bearing cabin top traveler, and aft

to a Lewmar #44 CST two-speed winch

Custom cast mast collar with provision for halyard and turning block attachment.

Two 10" 4-bolt cleats forward mid deck and aft

Self-draining foredeck anchor locker with drain and stainless pad eye to secure end of anchor rode

Two recessed deck scuppers

Custom cast mid-rail chock fitted into each toerail

Pulpit, stern rail, and stanchions custom fabricated stainless steel, thru-bolted with backing plates

Double lifelines of vinyl coated stainless steel cable with port and starboard boarding gates with braced stanchions

All lifeline terminals and turnbuckles are swaged stainless steel

Solid teak handrails and toerails

1-3-4" high solid teak toerails

Bowrail designed for ease of ground tackle handling

Custom cast anchor roller

Halyards, reefs, outhaul and vang, led aft. Winches

All winches Lewmar Ocean Series

Main sheet led to Lewmar #44 CST two-speed

Main halyard led to Lewmar #44 CST two-speed

Genoa halyard led to Lewmar #44 CST two-speed

Reefing - two lines led through a double stopper to Lewmar #44 CST two speed winch, mounted on aft cabin

top

Primaries - two Lewmar #54 CST self-tailing winches

Two 10" chrome winch handles, one 10" chrome lock-in.

Stem Head - Custom cast anchor roller with integral chocks.

Accommodations

Scandvik polished SS double galley sink

6' 6" headroom in main and aft areas, with 6' 4" headroom in forward sections

Forward cabin has a 6' 10" island berth

Main cabin has two 6' 5" settee berths, port berth converts to double

Aft-cabin with 6' 10" full width double berth

Storage in aft-cabin settee.

Ample drawers in both fore and aft cabins

Flat panel doors throughout

Contemporary curved head bookrack in aft-cabin

Large cedar lined hanging lockers in forward and aft cabins

Optimized area for instrument installation, storage locker space and panel arrangement at the chart table

Main cabin berthbacks with cabinets port and starboard

Aft head with separate stall shower

Forward cabin equipped with vanity sink, mirror, storage lockers, and upholstered seat

All berths provided with thick foam cushions covered with a durable fabric, zippered for ease of removal and cleaning

Raritan PHII head

Lights in hanging lockers. Ventilation and Light - 8 Lewmar polished Ocean Series deck hatches with wooden screens

4 main cabin recessed fixed port lights of Marguard Lexan

2 chrome dorade vents

8 Stainless Steel and 2 polished aluminum opening ports with screens

Acrylic sliding companionway hatch with fiberglass spray hood and solid teak hatch boards

Screened hatch boards
